Laser Cleaning Welding and Cutting Integrated Machine 3000W
The multi-function laser cleaning welding cutting machine uses a high-energy laser beam to process the workpiece. Its working principle is to focus the laser beam to a very small point and use the laser to melt or vaporize the material to achieve cutting, welding and cleaning operations.
Derniers produits
Multi-functional Integration
Compared with traditional single-function equipment, Multi-function laser cleaning welding and cutting machine integrates laser cleaning, laser welding and laser cutting, which greatly improves the flexibility of equipment use. Users do not need to purchase multiple devices, and can switch different functional modes according to different processing needs.
High Beam Quality
Multi-function laser cleaning welding and cutting machine's beam has a strong focusing ability and can be more concentrated on the processing part, reducing energy scattering and loss, thereby improving processing efficiency and Quality. For example, when cutting thin metal plates, the slit can be made narrower and the cut surface smoother.
Environmentally Friendly
Laser cleaning removes pollutants only through laser beams, and does not produce waste gas or waste liquid. Compared with traditional sandblasting or chemical cleaning methods, laser cleaning reduces waste emissions by 85%, which meets the environmental protection requirements of modern industry.

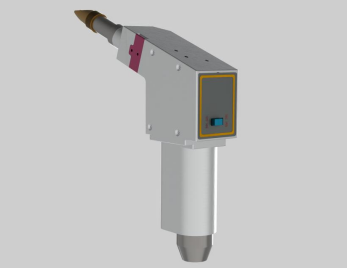

Lightweight Head Design
It employs a recirculating water cooling system, which ensures stable long-term operation. Compared to traditional air cooling mode, it offers higher heat dissipation efficiency, extending the
Paramètres du produit
Products Name | Multi-function Laser Cleaning Welding and Cutting Machine 3000W |
Products Model | SLC-W-3000W |
Laser Power | 3000W |
Work Mode | Cleaning/Welding/Cutting (switchable) |
Cable Length | 10m |
Laser Wavelength | 1080nm |
Cooling Mode | Water Cooling |
Equipment Weight | 240kg |
Handheld Head Weight | about 2kg |
Host Dimensions | L900mm×W650mm×H1200mm |
Supply Voltage | AC 380±10%V |
Mains Power Frequency | 50Hz |
Power Consumption@25℃ | <14kW |
Supply Pussure | 0.4MPa, Oil-Free and Dry Clean Compressed Air |
Domaines d'application
The cleaning function of multi-function laser cleaning welding and cutting machine is mainly used for cleaning various dirt such as black ash, oil stains, and scale on the surface of parts before and after welding;
The welding function is mainly aimed at welding thin-walled materials and precision parts, which can achieve spot welding, butt welding, overlay welding, etc;
The cutting function is mainly aimed at thin-walled materials, used for cutting thin plates. Multi-function laser cleaning welding and cutting machine can be used in many fields such as aerospace, rail transportation, automotive manufacturing, marine vessels, electronic microfabrication, food processing, stainless steel and aluminum alloy products, mold processing, etc.
affichage d'échantillons
