Laser Cleaning Welding and Cutting Integrated Machine 1500W/2000W
Integrating Three Functions

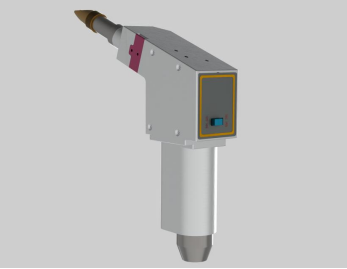

Lightweight Head Design
Simultaneous Cleaning ＆ Welding
Long-Term Operation
Cleaning function of this equipment is mainly used for cleaning various dirt
Welding function is mainly aimed at welding thin-walled materials and precision parts Cutting function is mainly aimed at thin-walled materials
製品パラメータ
Products Name | Laser Cleaning Welding and Cutting Integrated Machine 1500W/2000W |
Products Model | SLC-W-1500W/2000W |
Laser Power | 1500W/2000W |
Work Mode | Cleaning/Welding/Cutting (switchable) |
Cable Length | 10m |
Laser Wavelength | 1080nm |
Cooling Mode | Water Cooling |
Equipment Weight | 180kg |
Handheld Head Weight | about 2kg |
Host Dimensions | L900mm×W650mm×H1200mm |
Supply Voltage | AC 220±10%V |
Mains Power Frequency | 50Hz |
Power Consumption@25℃ | <8kW/<10kW |
Supply Pussure | 0.4MPa, Oil-Free and Dry Clean Compressed Air |
アプリケーション領域
The cleaning function of this equipment is mainly used for cleaning various dirt such as black ash, oil stains, and scale on the surface of parts before and after welding;
The welding function is mainly aimed at welding thin-walled materials and precision parts, which can achieve spot welding, butt welding, overlay welding, etc;
The cutting function is mainly aimed at thin-walled materials, used for cutting thin plates. This machine can be used in many fields such as aerospace, rail transportation, automotive manufacturing, marine vessels, electronic microfabrication, food processing, stainless steel and aluminum alloy products, mold processing, etc.
