Handheld 1000/2000W Pulse Laser Cleaning Machine
Handheld 1000/2000W Pulse Laser Cleaning Machine
video
Handheld 1000/2000W Pulse Laser Cleaning Machine
Handheld 1000/2000W Pulse Laser Cleaning Machine
1/2
<
>

Handheld 1000/2000W Pulse Laser Cleaning Machine

Peak power pulse laser
High-speed scanning system & High-precision control system
Single-mode and multimode two types
Anti-shaking technology & Light control technology
Multiple security measures
Covering nine cleaning processes


Product Features

Ultra-light Cleaning Head

Ultra-light Cleaning Head

Equipped with an ultra-light cleaning head, it can significantly enhance operational flexibility and convenience. It reduces fatigue during long operations and is suitable for fine cleaning of complex work piece surfaces.

Suit Parts of Different Shapes

Suit Parts of Different Shapes

Using an efficient laser beam to precisely clean surfaces of various shapes and sizes without damage, making it environmental and suitable for precision component cleaning across different industries.

Infrared Indication Function

Infrared Indication Function

The infrared indication focusing function enables the laser cleaner to locate the parts to be cleaned more precisely during operation, which improves the accuracy and efficiency of the work and protects the safety of the operator.

Water-cooling Mode

Water-cooling Mode

The water-cooling mode effectively maintains the machine's performance and temperature during operation, preventing efficiency drops or equipment damage due to overheating. It is highly suitable for large-scale industrial cleaning tasks that require continuous operation.

Swivel Wheels

Swivel Wheels

Equipped with swivel wheels, the laser cleaning machine is easy to adjust its position and direction to suit various working environments and workpiece requirements. This greatly enhances operational convenience and work efficiency.

Sealed Cabinet

Sealed Cabinet

The sealed cabinet of the laser cleaning machine provides excellent dust protection and heat resistance, effectively safeguarding internal components from environmental influences. This ensures stable operation and extends service life of the equipment.







Product parameters

Product Name

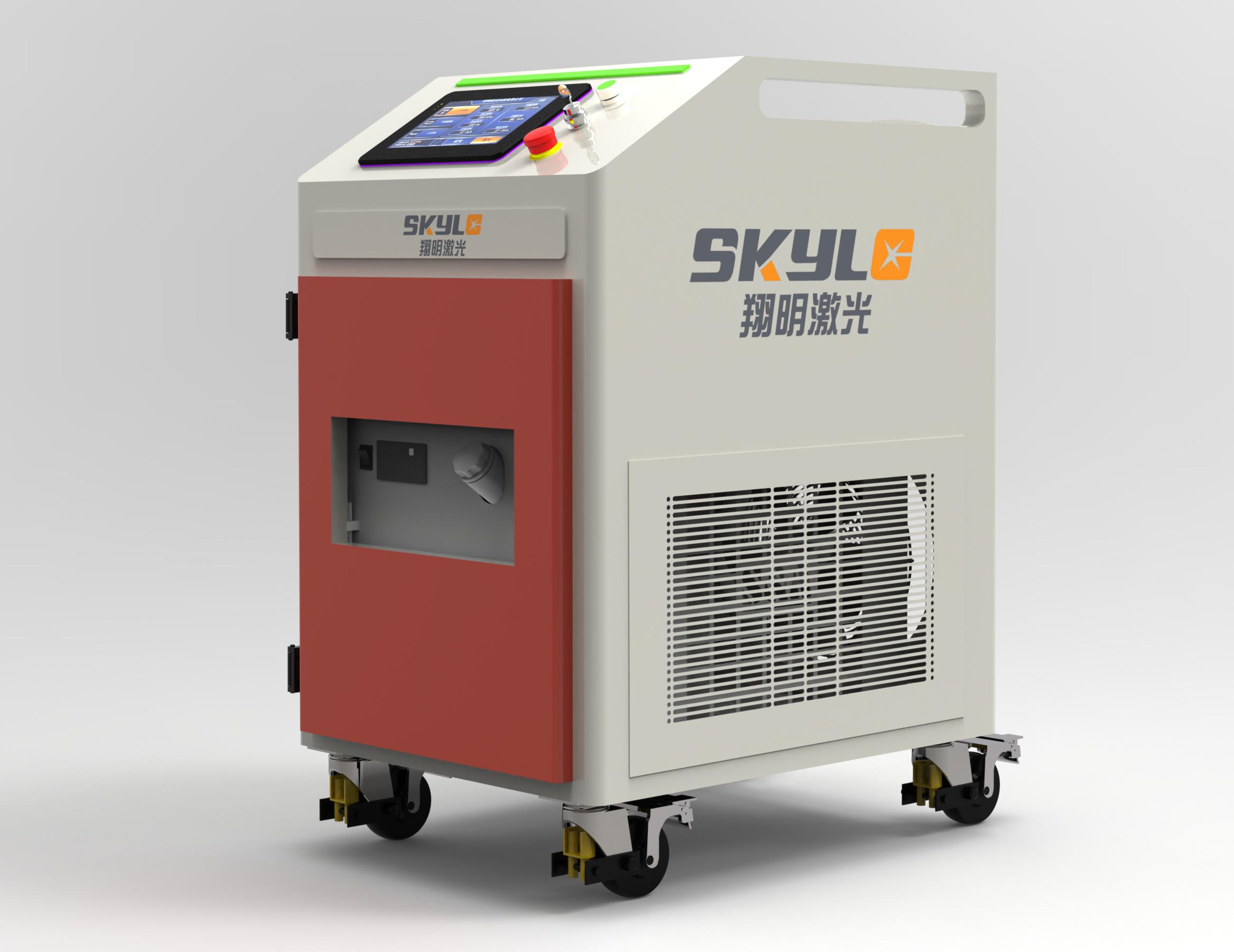

Handheld 1000/2000W Pulsed Laser Cleaning Machine

Product Modle

SKYCL-1-H-1000W/2000W

Laser Average Power

1000/2000W

Working Mode

Pulse

Fiber Length

10m

Cooling Mode

Air cooling

Product Dimensions

L875mm×W600mm×H1000mm

Scan Width

5-120mm adjustable

Weight

150kg/160kg

Cleaning Head Weight

1.5kg

Mains Power Frequency

50Hz

Power Supply

220V/380V

Power Consumption@25℃

<6kW/<10kW








Application Areas



The handheld 1000/2000W pulsed laser cleaning device is specifically designed for removing localized rust, paint, coatings, oil stains, oxide films, and other pollutants from various metal surfaces. It serves as an effective alternative to traditional workshop grinding tools. Additionally, it is suitable for cleaning the surfaces of non-metallic materials such as ceramics, glass, and composites.



Typical application scenarios include the cleaning of natural oxide film before aluminum alloy welding, the cleaning of black residue oxide after battery tray welding, the cleaning of train bogie weld seam before flaw detection, the cleaning of automobile sheet metal parts before renovation, and the cleaning of inaccessible parts of steel wire brush such as holes and grooves.










samples display

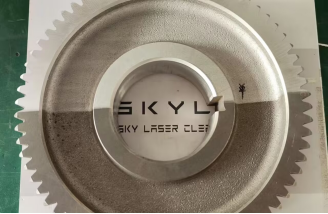

Gear Surface Rust
Gear Surface Rust
Aluminum Alloy After Welding
Aluminum Alloy After Welding
Titanium Teel Surface Degreasing
Titanium Teel Surface Degreasing
