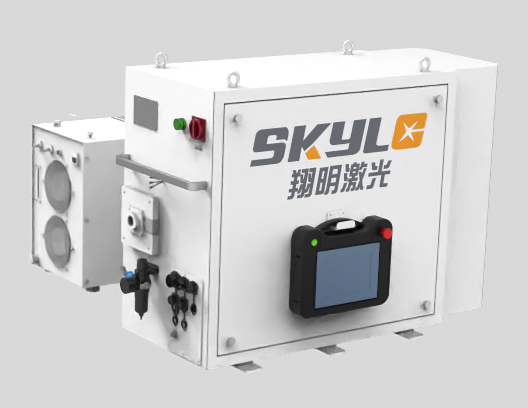

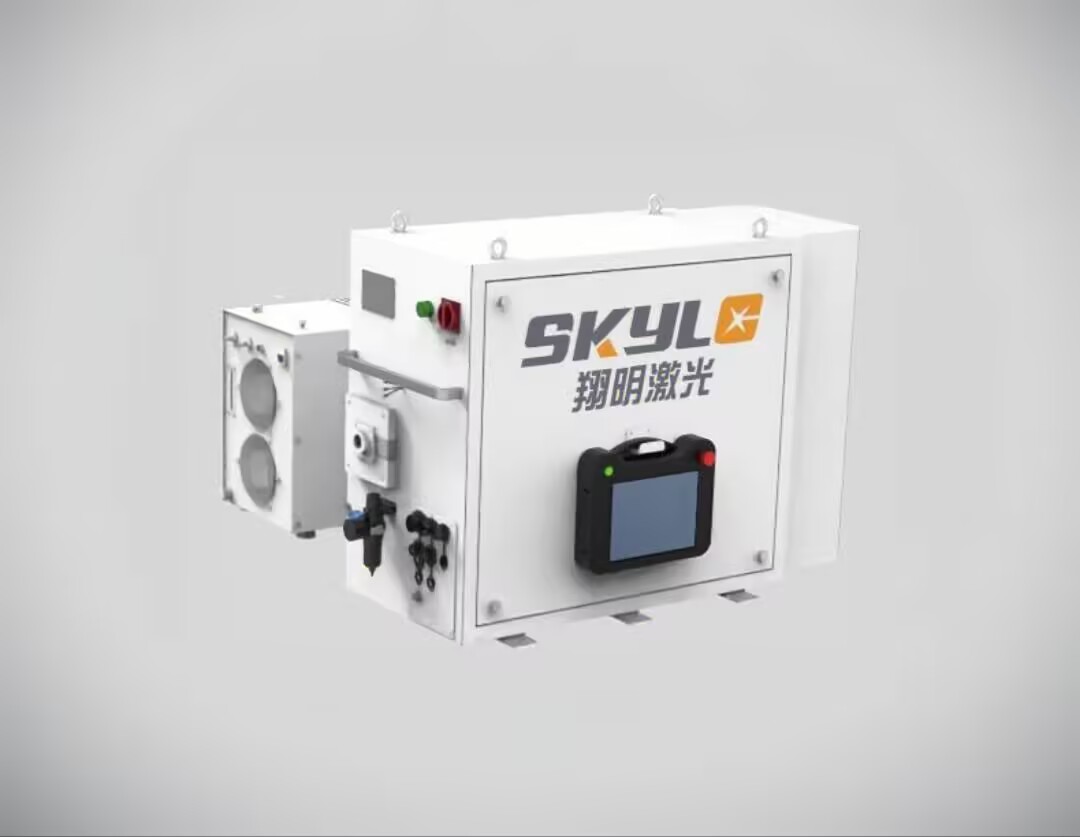

Automatic 100/200/300W Pulse Laser Cleaning Machine
Safe, non-contact, no damage to the substrate;
Environmentally friendly, no secondary pollution, the removal of substances can be recycled;
Accurate and controllable, can select area cleaning, and can also be achieved in the thickness direction of micron-level precision control;
Super cost-effective, laser cleaning equipment in use without consumables, only consume electricity;
It is adaptable and mobile, handheld or integrated into automation.
Product Features
Fully enclosed dustproof design
Fully enclosed housing design, effectively preventing dust from entering the interior, ensuring long-term stable operation.
Various external control interfaces
Equipped with a variety of external control interfaces to support the convenient connection of all kinds of peripherals.
Easy to integrate with robots＆ CNC systems
The cleaning system is designed for seamless integration with other automation equipment for efficient automated production lines.
Can work for a long time
High-efficiency heat dissipation system with long-life laser source supports 24-hour continuous operation.
Product parameters
| Model | SKYLC-SPM-100/200/300 |
| Laser Power | 100W/200W/300W |
| Power range | 10%-100% adjustable |
| Scan width | 5mm~100mmadjustable |
| Cooling mode | Air cooling |
| Fiber length | 5m |
| Cleaning head weight | 2.8kg |
| Net weight | 80kg/120kg/120kg |
| Product Dimensions | L1050mm×W400mm×H700mm (SKYLC-SPM-100） L1075mm×W735mm×H402mm (SKYLC-SPM-200/300) |
| Power Supply | 220V |
| Mains Power Frequency | 50Hz |
| Power Consumption@25℃ | <1000W/<3200W/<3200W |
Application Areas
This series of products is mainly used for cleaning various pollutants such as localized rust, paint, coatings, oil stains, natural/artificial oxide films, etc. on metal surfaces, including layered cleaning of paint, precise area selection cleaning of protective coatings, non-destructive cleaning of molds, etc. It can also be used for cleaning before bonding, interlayer cleaning in additive manufacturing, and cleaning of non-metallic surfaces.

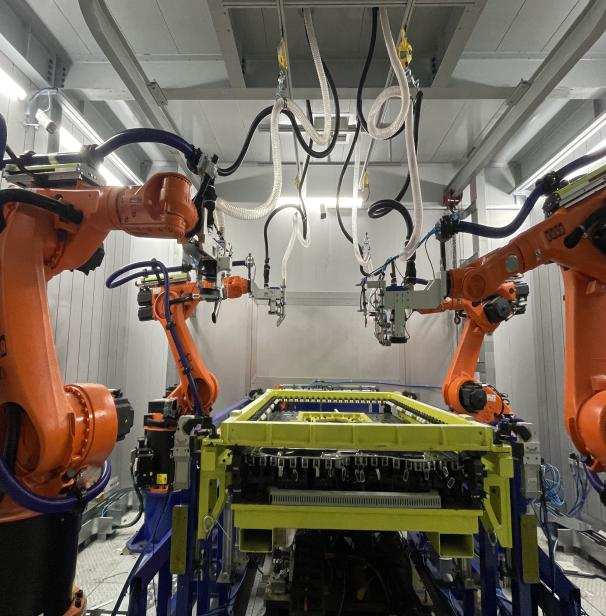

Typical application scenarios include manual cleaning of the oxide film before welding the storage tank ring of a launch vehicle, cleaning of the oxide film before and after MIG welding of the aluminum alloy body floor of a rail crossing, cleaning of the black and gray oxide after welding, cleaning of the side panel of the galvanized sheet top cover of an automobile before brazing, cleaning of the KTL coating on the power battery top cover, and cleaning and repairing of the insulator failure layers.
samples display
