Synchronous Cleaning Machine

Synchronous Cleaning
High efficiency and uniform performance
Can integrated with machine tool
Used for pre & post welding cleaning
Interlayer cleaning of multi-pass welding of thick plates

Send Inquiry

Chat Now

Product Features

Effective Cleaning

Synchronous cleaning machine using high-energy laser beam to quickly remove the oxidized layer of the metal surface, clean and efficient.

Uniform Cleaning

The cleaning effect is uniform, without damaging the substrate, and it is environmentally friendly with no residues.

Synchronous Cleaning

Balancing pre-weld oxide film removal and post-weld black residue cleaning, this process enhances efficiency and reduces costs.

Automated Cleaning

Can be integrated into automated machine tools to achieve large-scale cleaning operations.

Product parameters

Product Name	Synchronous Cleaning Machine
Laser Average Power	100W/200W/300W/500W
Laser Center Wavelength	1064nm
Scan Width	5mm ~ 100mm adjustable
Cooling Mode	Water cooling and cabinet air conditioner
Product Dimensions	966mm(L)×400mm(W)×680mm(H)
Net Weight	about 90kg / 210kg
Coding Head Weight	about 3kg / 5kg
Mains Power Frequency	50Hz
Power Consumption@25℃	＜1.5kW / ＜2kW / ＜3kW / <6kW

Application Areas

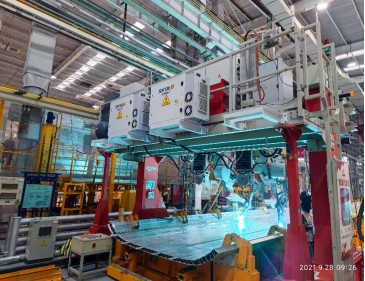

Synchronous cleaning machine can be used for pre & post welding cleaning of most metal parts, interlayer cleaning of multi-layer multi-pass welding of thick plates, interlayer cleaning in the process of additive manufacturing, especially in the cleaning of oxide film before MIG welding of aluminum alloys, and the cleaning of black oxides after welding, which has been realized in mass application.

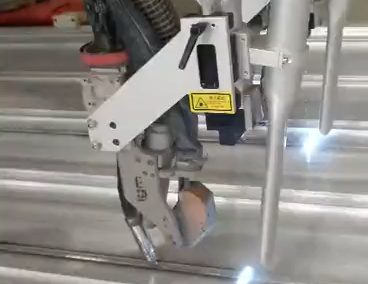

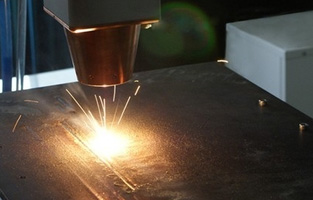

samples display
