Laser Cleaning Welding and Cutting Integrated Machine 1500W/2000W

1/2

Laser Cleaning Welding and Cutting Integrated Machine 1500W/2000W

Integrating Three Functions
Lightweight Head Design
Simultaneous Cleaning ＆ Welding
Long-Term Operation
Cleaning function of this equipment is mainly used for cleaning various dirt
Welding function is mainly aimed at welding thin-walled materials and precision parts Cutting function is mainly aimed at thin-walled materials

Send Inquiry

Chat Now

Product Features

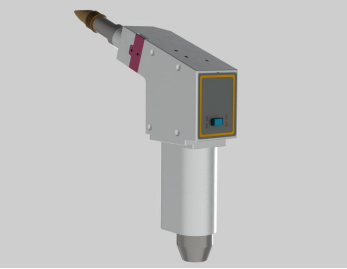

Lightweight head design

The lightweight head design can enhance operational convenience and flexibility. Not only does it reduce the burden on operators, but it also helps minimize the overall inertia of the equipment, improving positioning stability and consistency of results.

Integrating three functions

It integrates three functions-laser cleaning, welding, and cutting-into one unit, significantly enhancing its multifunctionality and flexibility. Users can swiftly adjust the operating mode based on actual needs.

Simultaneous cleaning ＆ welding

The machine is capable of performing weld seam cleaning simultaneously during the welding process. This feature eliminates the need for secondary cleaning, thereby avoiding the hassle and additional costs associated with post-weld cleanup.

Long-term operation

It employs a recirculating water cooling system, which ensures stable long-term operation. Compared to traditional air cooling mode, it offers higher heat dissipation efficiency, extending the

Product parameters

Products Name	Laser Cleaning Welding and Cutting Integrated Machine 1500W/2000W
Products Model	SLC-W-1500W/2000W
Laser Power	1500W/2000W
Work Mode	Cleaning/Welding/Cutting (switchable)
Cable Length	10m
Laser Wavelength	1080nm
Cooling Mode	Water Cooling
Equipment Weight	180kg
Handheld Head Weight	about 2kg
Host Dimensions	L900mm×W650mm×H1200mm
Supply Voltage	AC 220±10%V
Mains Power Frequency	50Hz
Power Consumption@25℃	<8kW/<10kW
Supply Pussure	0.4MPa, Oil-Free and Dry Clean Compressed Air

Application Areas

The cleaning function of this equipment is mainly used for cleaning various dirt such as black ash, oil stains, and scale on the surface of parts before and after welding;

The welding function is mainly aimed at welding thin-walled materials and precision parts, which can achieve spot welding, butt welding, overlay welding, etc;

The cutting function is mainly aimed at thin-walled materials, used for cutting thin plates. This machine can be used in many fields such as aerospace, rail transportation, automotive manufacturing, marine vessels, electronic microfabrication, food processing, stainless steel and aluminum alloy products, mold processing, etc.

samples display

cleaning

welding

cutting
