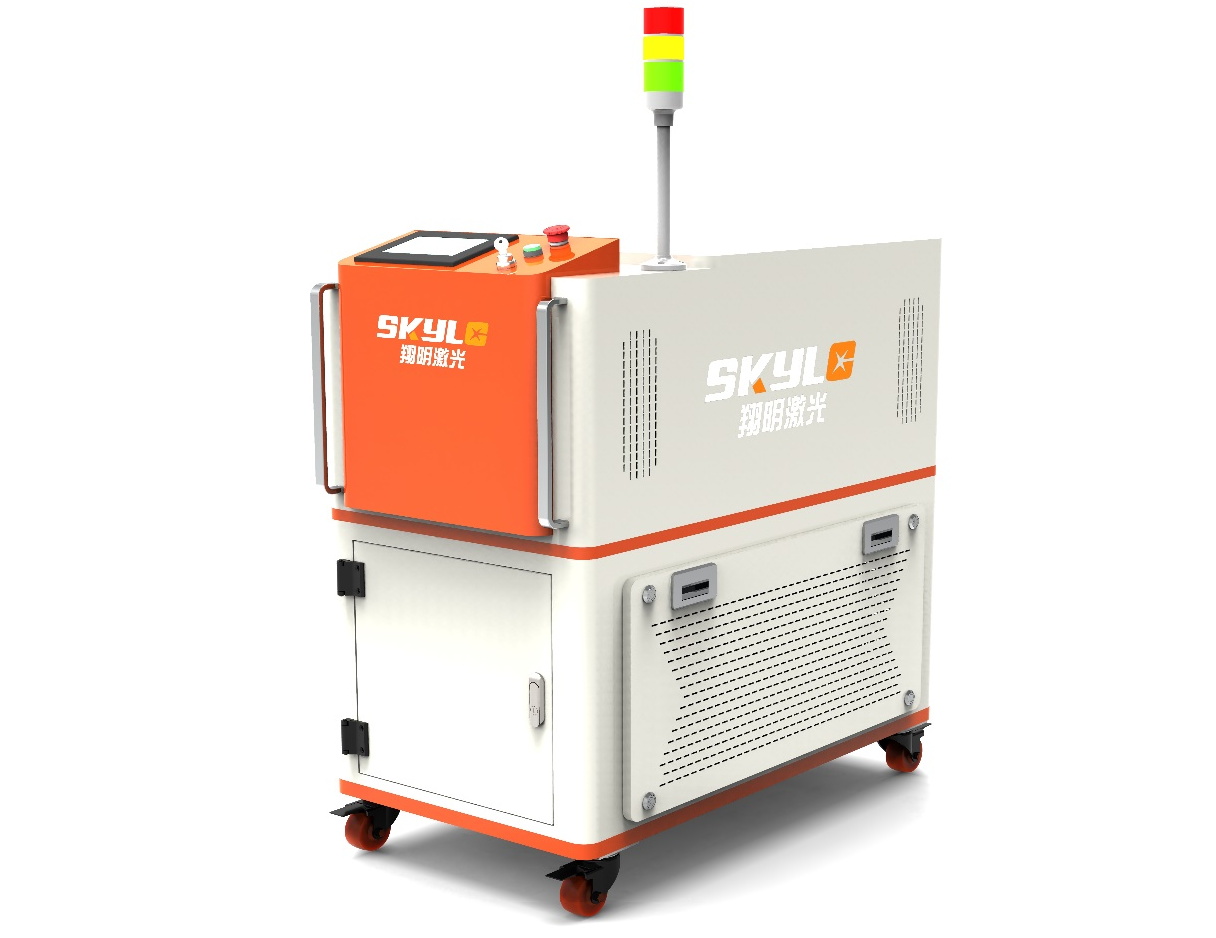

Automatic 1500/2000/3000W Continuous Laser Cleaning Machine
Automatic 1500/2000/3000W Continuous Laser Cleaning Machine adopts peak power pulse laser, high-speed scanning system and high-precision control system: the internal electrical components of the equipment are selected from well-known enterprise brands, the whole machine features stability, excellence performance, portability, high efficiency, and great cost-effectiveness.
Product Features
Long depth of focus
Adopting long depth of focus design, the device is equipped with anti-shake capabilities, ensuring continuous and stable operation.
Enclosed housing
This design not only can isolate dust and moisture, but also has the characteristic of high temperature resistance.

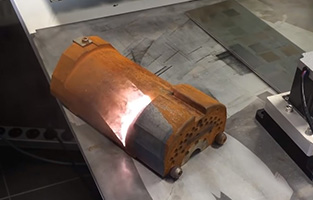

Large Format Cleaning
With high power, it is suitable for fast cleaning of large format.
Easy To Integrate
It is easy to integrate with automation, like robot arms, to improve efficiency.
Product parameters
Products Name | Automatic 1500/2000/3000W Continuous Laser Cleaning Machine |
Products Model | SLC-1500/2000/3000 |
Scanning Width | 5mm ~ 200mm adjustable |
Cooling Mode | Water cooling |
Fiber Length | 10m |
Equipment Weight | about 170kg/190kg |
Cleaning Head Weight | about 4kg |
Product Dimensions | L1100mm×W550mm×H1100mm |
Communication | RJ45 ethernet port; Standard S7 communication |
Supply Voltage | 220V /220V / 380V |
Mains Power Frequency | 50Hz |
Power Consumption@25℃ | <6kW/<10kW/<14kW |
Application Areas
This series of products is mainly used for cleaning various pollutants such as localized rust, paint, coatings, oil stains, natural/artificial oxide films, etc. on metal surfaces, including layered cleaning of paint, precise area selection cleaning of protective coatings, non-destructive cleaning of molds, etc. It can also be used for cleaning before bonding, interlayer cleaning in additive manufacturing, and cleaning of non-metallic surfaces.

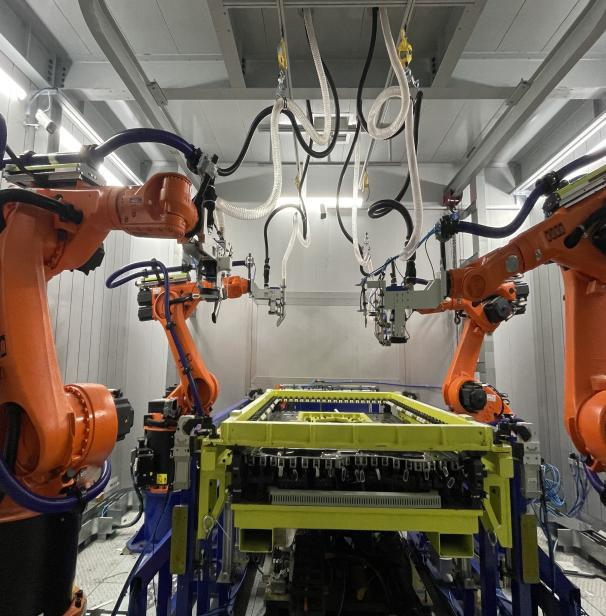

Typical application scenarios include manual cleaning of the oxide film before welding the storage tank ring of a launch vehicle, cleaning of the oxide film before and after MIG welding of the aluminum alloy body floor of a rail crossing, cleaning of the black and gray oxide after welding, cleaning of the side panel of the galvanized sheet top cover of an automobile before brazing, cleaning of the KTL coating on the power battery top cover, and cleaning and repairing of the insulator failure layers.
samples display
