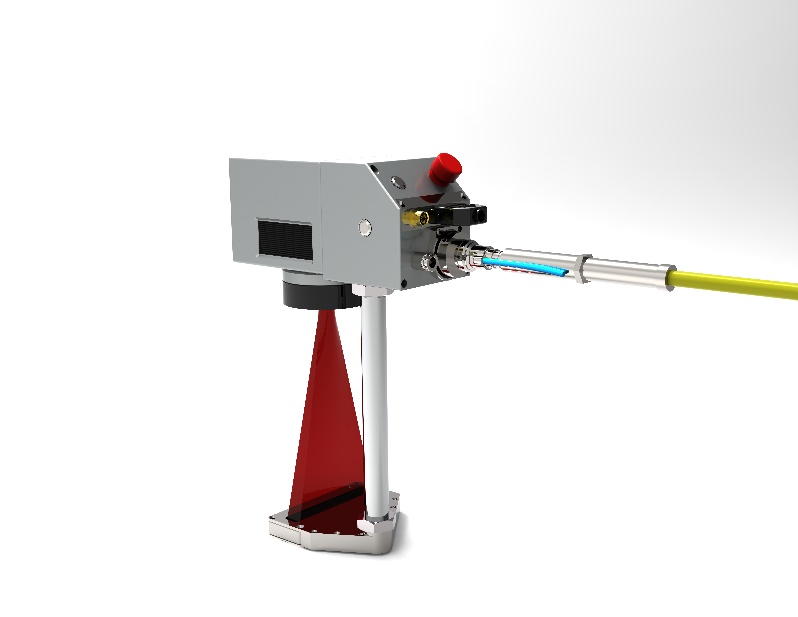

Laser Engraving Machine 200W
Engraving depth is controllable
It can produce permanent marks
It can achieve very fine and complex pattern and characters engraving
Don't require clamping and don't damage the base material
Suitable for automobile VIN engraving, wheel hub engraving and so on.
Product Features
Engraving depth is controllable
Laser engraving can precisely control the depth of the engraving, ensuring high uniformity in pattern depth and high clarity in the patterns.
Permanent marking
Laser Engraving, as an advanced technique, can produce permanent marks on the surface of materials and can also simultaneously clean the marked areas.
High precision
Laser engraving can achieve very fine and complex pattern and characters engraving, with precision that can reach the micron level.
Non-contact processing
As a non-contact engraving method, laser engraving does not require clamping and will not damage the base material.
Product parameters
Products Name | Laser Engraving Machine 200W |
Products Model | SKY-HK200-H |
Laser Power | 200W |
Controlling Power Range | 10%-100% |
Fiber Length | 5m |
Engraving Range | 170mm |
Engraving Speed | ≤3000mm/s |
Engraving Depth | Controllable |
Host Dimensions | L1200mm x W700mm x H900mm |
Engraving Head Weight | about 5kg |
Operation Type | Handheld & Automated |
Supply Voltage | AC 220±10%V |
Power Consumption@25℃ | <6kW |
Cooling Mode | Water Cooling |
Application Areas
This product is mainly utilized for deep engraving on the surface of high-strength steel and is also suitable for applications like scribing and scoring. Typical application scenarios include etching vehicle identification numbers (VIN)in automotive industry, marking steel structures before heat treatment and engraving identifiers on the surface of work pieces after painting processes.

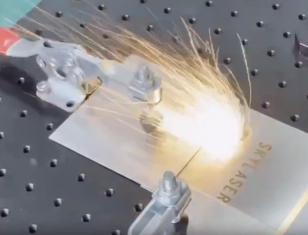

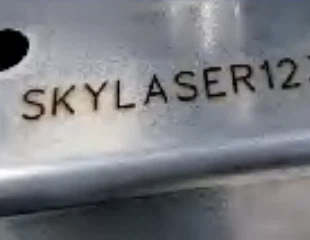

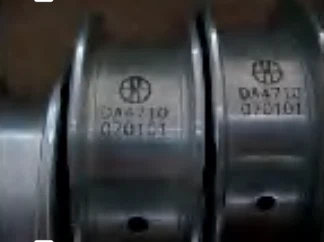

samples display
