Multi-function Laser Coding Machine

Clear marking characters
Controllable engraving depth
Completely contactless operation
High precision and efficiency
Supports materials with different hardness levels

Send Inquiry

Chat Now

Product Features

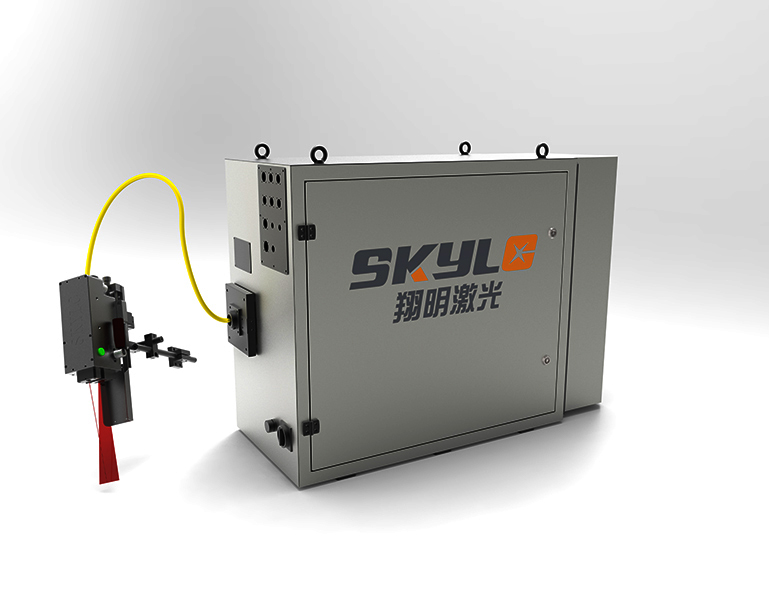

Split-type Design

The coding head and controller adopt a split design, featuring completely contactless operation to ensure safety.

High precision＆ efficiency

Highly percise coding; engraving 19 characters at 0.2mm depth requires only 15s.

Coding while collecting dust

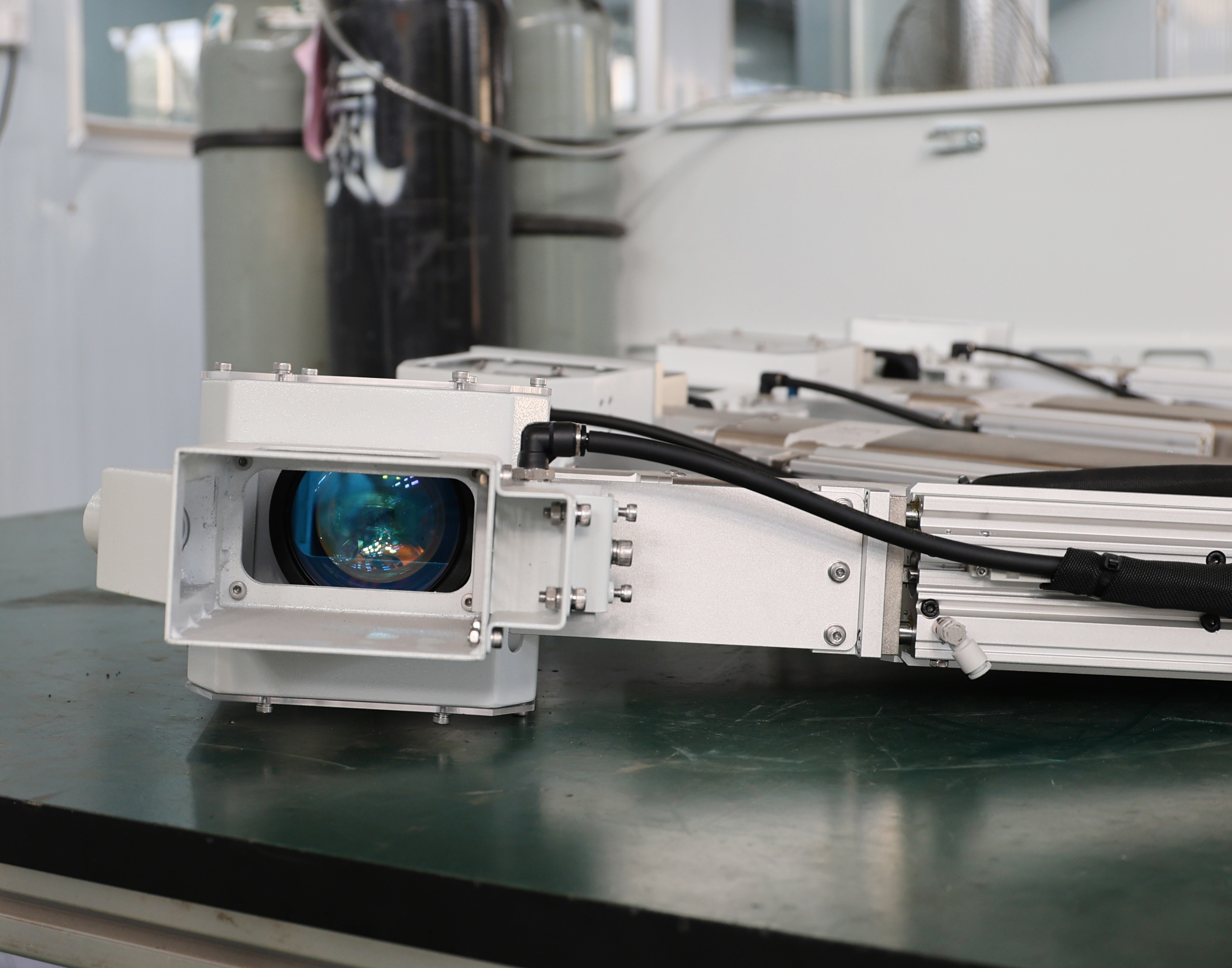

Positive pressure protection preventes lens contamination, and high-quality optical elements can ensure long-term operation.

Easy To Integrate ＆Expand

Multi-function laser coding machine is easy to integrate with automation, and can be expanded functions such as flight marking ,vision identification , and more.

Product parameters

Product Name	Multi-function Laser Coding Machine
Product Modle	HST-DM100/200/300/500 System
Laser Average Power	100W/200W/300W/500W
Power Adjustment Range	10%~100%
Working Mode	Pulse
Fiber Length	5m (Customizable 8m)
Fiber Minimum Bending Radius	1500mm
Cooling Mode	Built- in cabinet air conditioner
Product Dimensions	780mm(L)×340mm(W)×540mm(H)
Laser Cabinet	PC computer cabinet
Net Weight	160kg
Coding Head Weight	9.8kg
Supply Voltage	Single-phrase three-wire system AC220±10%V
Mains Power Frequency	50Hz
Working Temperature	0℃ ~ 40℃
Storage Temperature	-10℃ ~ 60℃
Power Consumption@25℃	<3kW

Application Areas

HST-DM100/200/300/500 series laser coding equipment is an automated standardized equipment which is professionally used for marking metal parts and high-strength steel surfaces, including coding PC computer cabinet, laser cabinet and laser head, adopting high-peak power pulsed lasers, imported high-speed scanning system, and high-precision control system. It is highly integrated automation, which can realize automatic high-speed marking and clearing, as well as coding data uploading function, so the whole machine is stable and reliable.

samples display
